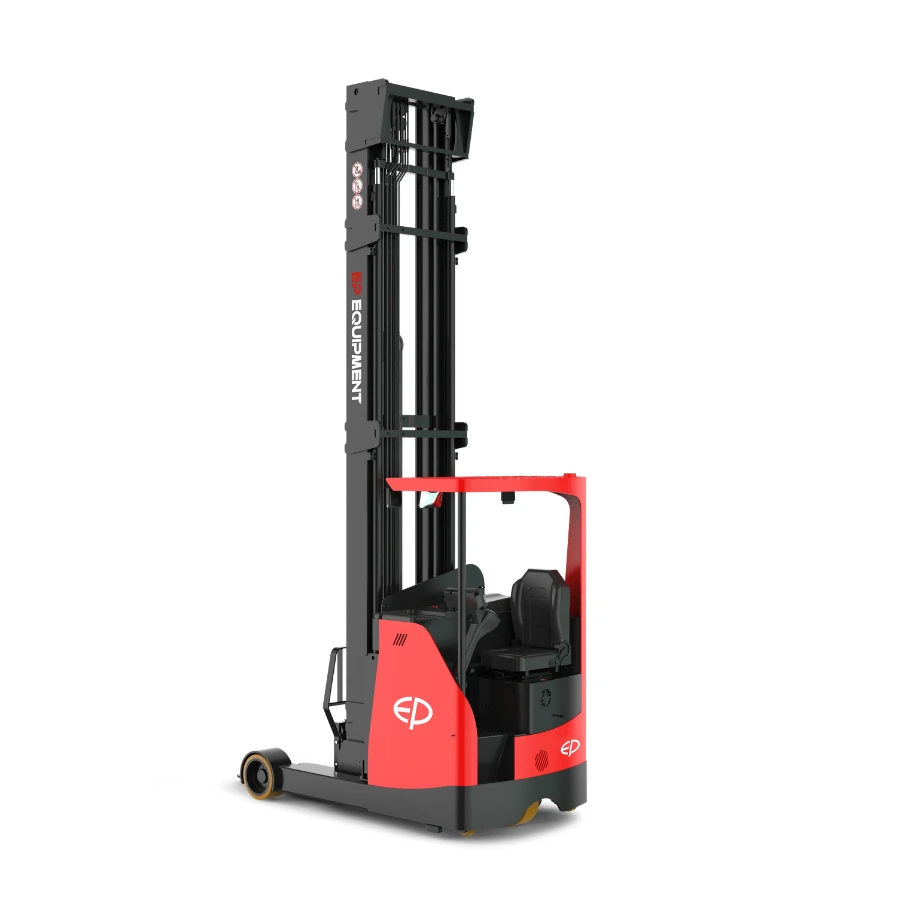

CQD25RVF Reach Truck
Hire from $83.00 per week
Built for heavy-duty warehousing and very high racking, the CQD25RVF Reach Truck is a strong fit for WA businesses that need more capacity, more mast height and stronger long-shift performance than standard reach trucks can offer. The CQD25RVF has a 2500 kg capacity, 12500 mm lift height and 48V power.
- 2.5 tonne reach truck for heavy-duty warehouse work
- Lift heights up to 12.5 metres
- Built for long shifts and high-bay operations
- Buy or hire from Compass
CQD25RVF Reach Truck
CQD25RVF high performance reach truck

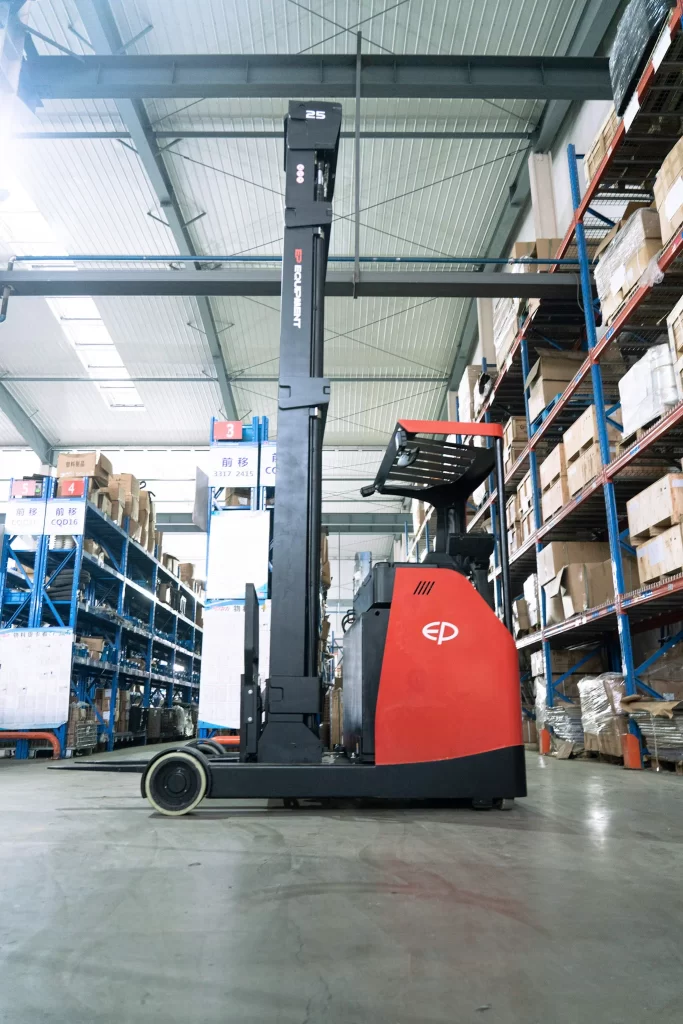

The CQD25RVF is a 2.5 tonne reach truck built for demanding warehousing. The CQD25RV(F) has an advanced mast design, 48V/700Ah battery, electric steering, proportional lifting and a full-colour display, all aimed at keeping handling stable and precise at lift heights up to 12.5 metres. It is clearly designed for high-rack operations where the truck needs to stay productive over longer shifts.
Clients that have purchased or hired this model experience a practical fit when a warehouse or distribution centre is pushing higher storage and heavier loads through the day. It suits large logistics hubs and high-bay operations where residual capacity, mast stability and long runtime matter more than ultra-compact chassis size. Compass Forklifts can supply the CQD25RVF for purchase, hire or lease, with finance options available if buying outright is not the right fit.
CQD25RVF Technical Information
| Specification | CQD25RVF |
|---|---|
| Capacity | 2500 kg |
| Power type | 48V lead-acid electric |
| Operator type | Seated |
| Turning radius | 1960 mm |
| Max lift height | 12500 mm |
| Best fit | High-bay warehouses, logistics hubs, heavy-duty reach work |
| Charging | External charging, 100A output |
| Warranty | Battery warranty depends on battery type supplied |
We also support businesses across the Perth metro area with servicing, repairs and reliable after-sales support.
Not sure if this model is right for your site? Send us your racking height, aisle width, pallet weight, shift pattern and location. We will take a look and point you in the right direction.
CQD25RVF FAQs
Everything you need to know about the CQD25RVF
Got questions about the CQD25RVF? Here are some of the most common things we get asked about this heavy duty reach truck.
What is the load capacity of the CQD25RVF?
The CQD25RVF has a rated load capacity of 2500 kg, making it a strong option for heavier-duty stacking, pallet handling and warehouse operations.
How high can the CQD25RVF lift?
The CQD25RVF is listed by EP with lift heights of up to 12.5 metres, making it suitable for high-racking warehouse environments where vertical storage space needs to be used efficiently.
What type of battery does the CQD25RVF use?
The CQD25RVF is based around a standard 48V/700Ah battery, with optional larger battery upgrades available for operations that need longer runtime between charges.
This makes it a good choice for busy warehouses where shift patterns and charging routines all need to be considered.
Is the CQD25RVF suitable for narrow aisle warehouses?
Yes. Despite being a heavier-duty reach truck, the CQD25RVF is designed with a compact chassis and tight turning radius, helping it work effectively in space-constrained warehouse environments.
Why choose the CQD25RVF over a smaller reach truck?
The CQD25RVF is a better fit when the work is heavier, the racks are higher and the operation needs stronger residual capacity and longer runtime than a smaller reach truck can comfortably provide.
