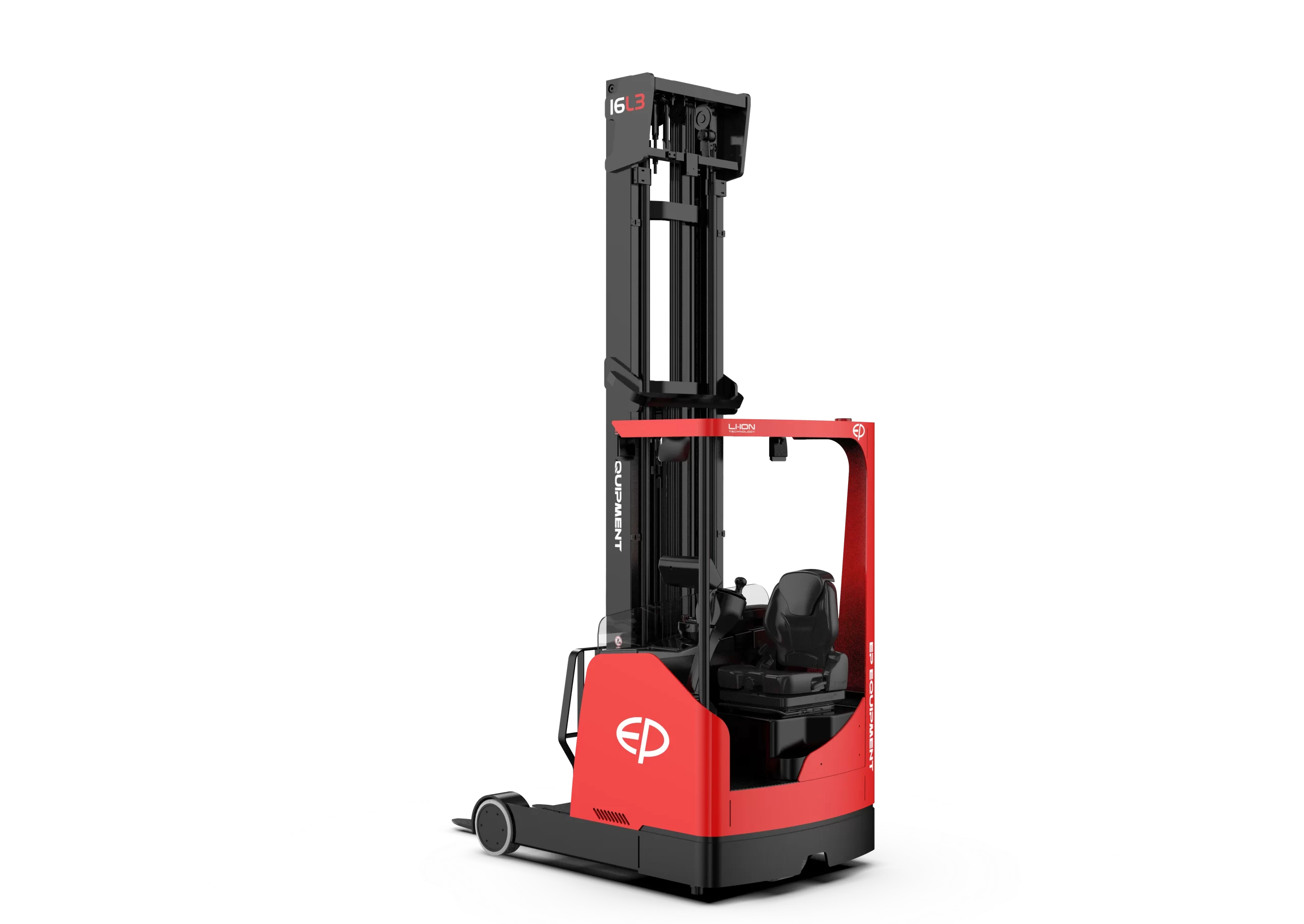

CQD16 PRO Li-ion Reach Truck
Hire from $83.00 per week
Built for higher racking and heavier warehouse loads, the CQD16 PRO Li-ion Reach Truck is a strong fit for WA businesses that need more capacity than the 1.4 tonne model without stepping away from narrow-aisle efficiency. The CQD16 PRO has 1600 kg capacity, 9655 mm lift height and 80V lithium-ion power.
- 1.6 tonne reach truck for high-density warehousing
- 80V lithium power for stronger shift performance
- Stable mast performance at height
- Buy or hire from Compass
CQD16 PRO Li-ion Reach Truck Perth
CQD16 PRO Li-ion Reach Truck Model
The CQD16 PRO is the 1.6 tonne model in the CQD14 and CQD16 PRO series. It has the same compact chassis concept as the smaller truck, with a 2701 mm working aisle width, proportional lifting, precise steering and a spacious operator cab, but with more lift capacity and a higher maximum mast height of 9655 mm. It is designed for warehouses that need tighter aisle operation without sacrificing higher-reaching performance.
For sites around Perth and Western Australia, the CQD16 PRO is a practical option when pallet weights are edging up but the warehouse still needs a compact reach truck that works cleanly in high-bay racking. The 80V lithium setup supports faster lifting and reduced downtime, while the stable mast design helps keep handling controlled at height. Compass Forklifts can supply the CQD16 PRO for purchase, hire or lease, with finance options available if buying outright is not the right fit.
CQD16 PRO Technical Information
| Specification | CQD16 PRO |
|---|---|
| Capacity | 1600 kg |
| Power type | 80V lithium-ion electric |
| Operator type | Seated |
| Turning radius | 1629 mm |
| Max lift height | 9655 mm |
| Best fit | High-density racking, narrow aisles, distribution centres, taller warehouse storage |
| Charging | External charging, 100A charger output |
| Warranty | 7-year standard lithium battery warranty |
We help customers with servicing, repairs and ongoing after-sales support. To check whether this model suits your site, send your racking height, aisle width, pallet weight, shift pattern and a member of the team will guide you from there.
CQD16 PRO Order Picker FAQs
Everything you need to know about the CQD16 PRO reach truck
Got questions about the CQD16 PRO? Here are some of the most commonly asked questions we get asked about this high performance reach truck.
What is the load capacity of the CQD16 PRO?
The CQD16 PRO is rated at 1600 kg, which gives it more lifting headroom than the smaller CQD14 PRO.
How high can the CQD16 PRO lift?
The CQD16 PRO a maximum lift height of 9655 mm which is ideal for warehouses with high-bay racking.
Is the CQD16 PRO still suitable for narrow aisles?
Yes. It sits in the same compact PRO series and shares the narrow-aisle design logic used across the CQD14 and CQD16 PRO range.
Does the CQD16 PRO use lithium power?
Yes. The series has an 80V lithium-ion power with opportunity charging and external charging support.
Why choose the CQD16 PRO over the CQD14 PRO?
Choose the CQD16 PRO when you need more capacity and more reach but still want the same compact reach-truck layout for high-density racking.
